Thicknesses of 230mm Cutting Discs
Understanding the Thicknesses of 230mm Cutting Discs

Cutting discs, also known as cutting wheels or cutoff wheels, are essential tools for various industries including metalworking, construction, and automotive repair. Among the many sizes available, 230mm (9 inches) cutting discs are popular due to their versatility and efficiency in cutting through a wide range of materials. A crucial factor that affects the performance of these discs is their thickness. This blog will explore the importance of disc thickness, common thicknesses available for 230mm cutting discs, and how to choose the right thickness for your needs.

Why Thickness Matters

The thickness of a cutting disc significantly influences its cutting performance, durability, and suitability for different tasks. Here are some key aspects affected by disc thickness:

  • Cutting Speed: Thinner discs tend to cut faster because they remove less material. This makes them ideal for tasks where speed is crucial.
  • Precision: Thinner discs provide more precise cuts with less material wastage, making them suitable for detailed and delicate cutting jobs.
  • Durability: Thicker discs are generally more durable and less prone to breaking. They can withstand more stress and are better suited for heavy-duty applications.
  • Material: The type of material being cut also influences the choice of disc thickness. Thicker discs are preferable for tougher materials, while thinner discs work well for softer or thinner materials.

Common Thicknesses for 230mm Cutting Discs

230mm cutting discs come in a variety of thicknesses, each designed for specific applications. Here are the most common thicknesses:

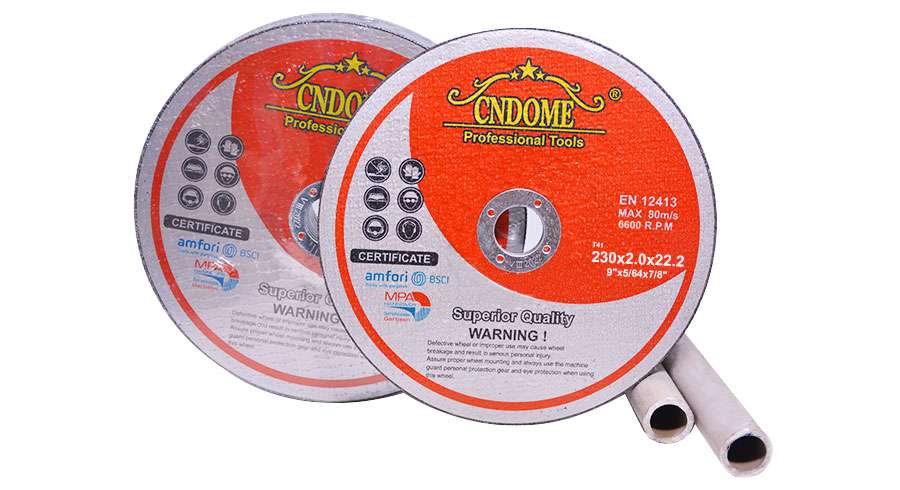

  • 1.6mm to 2.0mm: These thin discs are designed for fast, clean cuts and are ideal for cutting thin metal sheets, pipes, and profiles. They are also suitable for tasks requiring high precision and minimal material wastage.

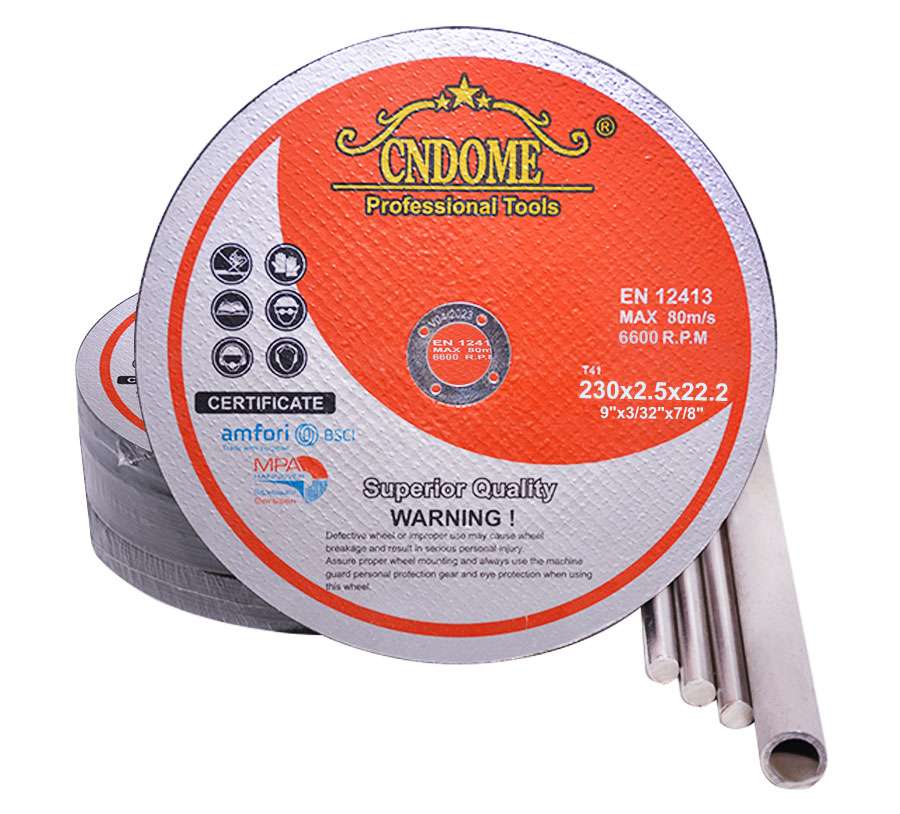

  • 2.5mm to 3.0mm: Medium thickness discs offer a balance between speed and durability. They are versatile and can handle a wide range of cutting tasks, including cutting medium-gauge metal and profiles.
  • 3.0mm to 4.0mm: Thicker discs provide enhanced durability and are better suited for cutting thicker and tougher materials. They are ideal for heavy-duty applications such as cutting large metal beams, concrete, and stone.

Choosing the Right Thickness

Selecting the appropriate thickness for your 230mm cutting disc depends on several factors:

  • Material to be Cut: Consider the hardness and thickness of the material. For example, cutting thin metal sheets requires a thinner disc, while thicker or harder materials require a thicker, more durable disc.
  • Type of Cut: Determine whether you need a precise, clean cut or a rougher, more robust cut. Thinner discs are better for precision, while thicker discs are better for strength and durability.
  • Cutting Speed vs. Durability: If speed is a priority, opt for a thinner disc. If you need the disc to last longer and withstand more stress, a thicker disc is more suitable.
  • Safety: Always consider safety when choosing a disc. Thinner discs can be more prone to breaking if misused, so ensure you match the disc thickness to the task at hand and follow all safety guidelines.


Understanding the different thicknesses of 230mm cutting discs and their applications can help you make informed decisions for your cutting tasks. Whether you need speed, precision, or durability, there is a cutting disc thickness that fits your needs. Always prioritize safety and choose a disc that is appropriate for the material and type of cut you are performing. With the right disc, you can achieve efficient and effective cutting results in your projects.
