The Ultimate Guide to Ceramic Grinding Discs for Metal
You know the frustration. You’re grinding a stainless steel weld, and the disc loads up, glazes over, and stops cutting. You apply more pressure, but that only creates heat—blue spots on your workpiece, warped metal, and a disc that’s now useless. Another disc wasted. Another job delayed. Another reason to question your tooling choices.
If this sounds familiar, it’s time you discovered ceramic grinding discs.
As a factory owner with nearly two decades in the abrasive industry, I’ve watched ceramic grain technology transform metalworking. Today, I’ll show you exactly what makes Ceramic Grinding Discs for Metal special, how to choose the right one, and—most importantly—how to build your own brand with our OEM partnership.
Chapter 1: What Exactly Is a Ceramic Grinding Disc?
The Technology Behind the Magic
A ceramic grinding disc is an abrasive tool made with ceramic alumina grain—a premium abrasive created through a sophisticated sintering process. Unlike conventional abrasives that simply wear down and dull, ceramic grains are engineered to self-sharpen through micro-fracturing .
Here’s how it works: As you grind, the pressure causes microscopic fractures in the ceramic grain. These fractures break off tiny fragments, constantly exposing fresh, sharp cutting edges . This process repeats throughout the life of the disc, delivering consistent performance from first use to last .
What Makes It Different?
| Abrasive Type | Grain Behavior | Best For | Lifespan |
|---|---|---|---|
| Ceramic | Micro-fractures, self-sharpens | Hard metals, stainless, titanium | Longest |
| Zirconia | Self-sharpening but coarser | General stainless, heavy grinding | Long |
| Aluminum Oxide | Dulls, fractures conventionally | Mild steel, general purpose | Standard |
| Silicon Carbide | Sharp but brittle | Non-ferrous metals, cast iron | Short |
The Science of Precision
Premium ceramic discs—like those using advanced grain technologies—feature precision-shaped grains. For example, some manufacturers use triangular grains that are uniformly sized and perpendicularly oriented on the backing . Each triangle creates two cutting edges, resulting in highly aggressive grinding action . This technology can deliver:
- Up to 3× longer life versus conventional abrasives
- Up to 40% faster cut
- Cooler grinding with less heat buildup
Chapter 2: Why You Need Ceramic Grinding Discs for Metal
1. Longer Service Life
The self-sharpening property of ceramic grains means your disc keeps cutting long after conventional discs would be discarded . While ceramic discs may cost more upfront, their extended lifespan makes them more cost-effective in the long run .
2. Cooler Grinding
Heat buildup is a major problem when grinding metal. It can:
- Discolor stainless steel (blueing)
- Alter the metallurgical properties of heat-sensitive alloys
- Cause workpiece distortion
- Create operator discomfort
Ceramic discs run significantly cooler than conventional abrasives . Some incorporate active grinding additives in the coating that substantially improve stock removal while preventing clogging and enabling cooler operation .
3. Higher Efficiency
Because ceramic grains stay sharp, they cut more aggressively with less pressure required . This means:
- Faster material removal
- Reduced operator fatigue
- Higher productivity
- Better surface finishes
4. Exceptional Versatility
Ceramic grinding discs excel on difficult-to-machine materials :
Chapter 3: How to Choose the Right Ceramic Grinding Disc
Step 1: Identify Your Material
While Ceramic Grinding Discs for Metal work on many metals, match the specific product to your primary application. Some ceramic discs are optimized for stainless steel, others for general metal fabrication.
Step 2: Select the Right Grit Size
Step 3: Choose the Correct Disc Size
Common sizes for ceramic grinding discs include:
Step 4: Consider the Backing and Bond
Most ceramic grinding discs use a fiberglass backing with resin bond . Some feature semi-open coatings for improved chip evacuation . Others include grinding-active coatings that reduce loading and keep the disc cool .
Step 5: Match RPM to Your Grinder
Always ensure the disc’s maximum RPM rating exceeds your angle grinder’s speed. For example, a 125mm disc typically operates at speeds around 12,000 RPM, but always check the specific product specifications .
Chapter 4: Applications Across Industries
Metal Fabrication
Ceramic discs excel at:
- Grinding welds on stainless steel and carbon steel
- Edge and corner work
- Surface preparation for coatings
Automotive & Aerospace
Ideal for high-strength alloys:
Foundry & Forging
Perfect for:
Maintenance & Repair
Effective in demanding environments:
Chapter 5: Safety First—Protecting You and Your Customers
Critical Safety Standards
Quality Ceramic Grinding Discs for Metal carry essential certifications:
- EN12413 (European standard)
- MPA (German safety certification)
- ISO9001 (Quality management)
Our factory products meet all these standards, with iron/sulfur/chlorine content below 0.1% for stainless steel applications.
Pre-Use Inspection Checklist
1. Visual Check
Examine for cracks, chips, or damage. A damaged wheel can explode at speed.
2. The Ring Test
Suspend the disc on your finger and tap gently. A clear ring means sound structure; a dull thud means reject it.
3. Speed Rating
Never exceed the maximum RPM printed on the disc. For 125mm ceramic discs, this is typically around 12,000 RPM .
4. Expiry Date
Resin-bonded wheels have a shelf life—usually 3 years from manufacture. Expired wheels become brittle and dangerous.
5. Arbor Match
Ensure the arbor hole (typically 22.2mm) matches your grinder’s spindle perfectly.
Safe Operating Practices
Do:
- Always use the wheel guard
- Wear eye protection, gloves, and hearing protection
- Allow the disc to reach full speed before contacting work
- Use proper angle (15-25° for grinding)
Never:
- Exceed maximum RPM
- Force the disc or apply excessive pressure
- Remove the guard
- Use a damaged or expired disc
Chapter 6: Why Partner With Us for Your OEM Ceramic Disc Line
Our Factory: Built for Quality
With nearly 26 years of manufacturing experience, we’ve become a trusted partner for brands worldwide—including Fortune 500 companies. Our facility features:
- 20,000㎡ factory with 13,000㎡ production floor
- 100+ employees including 18 R&D specialists
- Computer-controlled curing kilns for precise bonding
- Export to 70+ countries globally
Our Certifications
We hold the credentials that matter to your customers:
- ISO9001 International Quality System
- German MPA Safety Certification
- EN12413 European Standard
- ISO14001 Environmental Management
- OHSAS18001 Occupational Health & Safety
- PICC Product Liability Insurance
What We Can Do For You
1. Full OEM Customization
You bring the brand vision. We handle everything:
- Formula development: Tailored ceramic grain blends for your target materials—stainless steel, titanium, nickel alloys, or general fabrication
- Specification flexibility: Any diameter from 100mm to 230mm, any thickness, any arbor size
- Color customization: Match your brand colors for instant shelf recognition
- Label design: Professional, compliant with regional requirements
- Packaging: From shrink wrap to retail-ready boxes
2. Premium Ceramic Technology
We understand that ceramic discs represent a premium investment for end users . That’s why we engineer ours to deliver:
- True self-sharpening action for consistent performance
- Active grinding additives for cooler operation
- Optimal grain orientation for maximum cutting efficiency
- Controlled micro-fracturing for extended life
3. Quality Assurance You Can Trust
Our quality system includes:
- Incoming inspection of all raw materials
- In-process quality control at every stage
- Pre-shipment inspection for every order
- Performance testing on actual workpieces
- Full traceability batch tracking
We pick 3 wheels from every 10 for rigorous testing—physical (weight, diameter, balance) and performance (cutting life, speed).
4. Technical Expertise
Our technology foundation comes from:
- Joint venture with UK ARROW company
- Japanese-trained engineer with 10+ years experience
- Continuous R&D introducing new formulas for market requirements
5. Flexible Ordering
| Factor | Standard MOQ | What’s Possible |
|---|---|---|
| New customers | 20,000 pcs/item | Smaller trial orders available |
| OEM printing | 20,000 pcs/item | Plate charges negotiable |
| Sample orders | By arrangement | Testing before committing |
6. Free Sample Program
We believe in our products. We want you to believe in them too.
Sample process:
- Contact us with your requirements (materials, applications, target markets)
- We recommend the optimal ceramic
- Samples shipped within 3-5 working days
- You test in real conditions
- Satisfied? Place your order. Not satisfied? We adjust.
You pay only shipping. The samples themselves are free.
Our promise: If you’re not impressed, don’t order. We’d rather earn your trust than push a sale.
7. Free Packaging Design
Good products deserve great packaging. Our in-house design team creates:
- Brand identity—logo, color scheme, typography
- Packaging formats—blister cards, boxes, shrink wrap, bulk
- Multi-language support—English, Spanish, French, Arabic, more
- Compliance information—safety warnings, certifications
And it’s completely free. No hidden fees. We invest in your success.
Chapter 7: Technical Specifications Reference

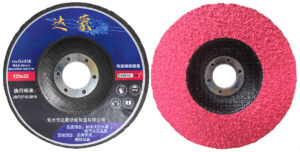

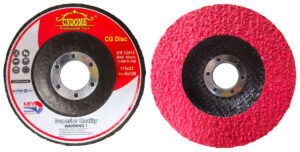

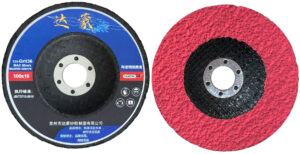

Ceramic Grinding Disc Options
Recommended Operating Parameters
| Disc Size | Max RPM (typical) | Optimal Speed Range |
|---|---|---|
| 115mm | 13,300 | 8,000-12,000 |
| 125mm | 12,250 | 7,000-11,000 |
| 150mm | 10,200 | 6,000-9,000 |
| 180mm | 8,500 | 5,000-8,000 |
| 230mm | 6,650 | 4,000-6,000 |
Chapter 8: Frequently Asked Questions
Q: Are ceramic grinding discs worth the extra cost?
A: Absolutely. While ceramic discs have a higher upfront price, their longer service life and faster cutting action make them more economical overall . Users typically report 3-5× longer life compared to conventional abrasives, plus significant time savings from faster material removal.
Q: Can ceramic discs be used on all metals?
A: Ceramic discs excel on hard-to-grind materials like stainless steel, titanium, and nickel alloys . They also work well on carbon steel and cast iron . For aluminum and other soft non-ferrous metals, special anti-loading formulations are recommended.
Q: What causes ceramic discs to stop cutting effectively?
A: Common issues include:
- Loading (metal particles clogging the disc)—use a sharper grit or anti-loading配方
- Glazing (grains dull without fracturing)—apply more pressure to initiate micro-fracturing
- Incorrect RPM—check your grinder speed matches the disc rating
- Wrong grit for application—coarser for heavy removal, finer for finishing
Q: How do I know when to replace a ceramic disc?
A: Replace when:
- Diameter is significantly reduced
- Cutting speed slows noticeably
- Vibration increases
- Visible damage appears
- Disc is past expiry date
Q: What certifications matter for export markets?
A: For Europe, EN12413 and MPA certification are essential . For general quality, ISO9001 indicates reliable manufacturing. For stainless steel applications, low iron/sulfur/chlorine content (<0.1%) prevents contamination.
Q: Can you match existing product specifications?
A: Absolutely. Our R&D team can reverse-engineer existing wheels or develop new specifications based on your requirements. With decades of combined experience, we’ve developed formulas for virtually every application.
Q: What’s your typical lead time?
A: Standard production lead time is approximately 45 days after receiving advance payment and confirming all order details. For established customers with regular orders, we can schedule continuous supply.
Chapter 9: Storage and Handling Guidelines
Optimal Storage Conditions
To maintain ceramic disc performance and safety:
- Temperature: 5°C-30°C (41°F-86°F)
- Humidity: Below 70%, avoid moisture
- Location: Off floors, away from walls
- Protection: Keep in original packaging until use
- Avoid: Direct sunlight, chemicals, extreme temperatures
Handling Best Practices
- Always handle carefully—discs are brittle
- Store flat or upright as designed
- Prevent impact damage during transport
- Rotate stock—first in, first out
- Never roll discs across the floor
Shelf Life Management
All resin-bonded discs have a finite shelf life. Implement a system to:
- Track manufacturing dates
- Monitor inventory age
- Remove expired discs from stock
- Educate customers about expiration
Conclusion: Your Ceramic Disc Brand Starts Here
Ceramic Grinding Discs for Metal represent the cutting edge of abrasive technology. For your customers, they mean:
- Faster work
- Better results
- Lower long-term costs
- Less operator fatigue
For you, they represent an opportunity to differentiate your brand in a crowded market. While commodity discs compete on price alone, premium ceramic products compete on performance—and build customer loyalty.
Whether you’re:
- A distributor seeking consistent quality
- A brand owner building a premium line
- An impporter serving specific market needs
- A large enterprise seeking strategic partnerships
We have the experience, capacity, and commitment to be your ideal OEM partner.
Our promise to you:
- Quality that meets international standards
- Consistency that builds your brand reputation
- Flexibility that adapts to your needs
- Partnership that grows with your business
Ready to start the conversation?
Contact us today to discuss your requirements. Let us show you why global brands trust us as their manufacturing partner for Ceramic Grinding Discs for Metal.
Your brand. Our quality. Global success.
