Mini Cutting Discs for Precise and Controlled Cutting

A mini cutting disc is a small-diameter resin-bonded abrasive wheel designed for precision cutting in applications where standard-sized discs are impractical. Typically ranging from 38mm to 76mm in diameter, these compact cutting tools are engineered for use with rotary tools, die grinders, and mini grinders. Their reduced size allows access to confined spaces and intricate workpieces that larger cutting discs cannot reach.

What Sets Mini Cutting Discs Apart

The primary distinction between a mini cutting wheel and a standard cutting disc lies in diameter and application. Standard cutting discs (100mm–230mm) are designed for heavy fabrication, structural steel, and large-section cutting. Mini cutting discs (38mm–76mm), by contrast, are built for precision work on small components, thin materials, and tight-radius cutting. The smaller diameter delivers greater control and reduced material removal per pass, making them ideal for detailed work where accuracy matters more than raw cutting speed.

Design Characteristics

Mini cutting discs are characterised by four key features:

• Small diameter – Typically 38mm to 76mm, enabling access to confined spaces
• Narrow cutting area – Thin profiles (0.8mm–2.0mm) create narrow kerfs for precise cuts with minimal material waste.
• Easy handling – Lightweight cutting discs require less force to control, reducing operator fatigue during detailed work
• Confined space capability – Compact size allows cutting in areas where larger tools cannot fit

Compatible Materials

Mini cutting discs are suitable for cutting a variety of materials, including:

• Metal – General metal cutting for small components and sheet metal
• Stainless steel – Precision cutting of thin stainless sections with minimal heat generation
• Carbon steel – Clean cutting of small carbon steel parts and profiles
• Aluminium – Light cutting of non-ferrous metals where clogging must be minimised

Compatible Tools

Mini cutting discs are designed for use with:

• Rotary tools – High-speed handheld tools for precision work
• Die grinders – Pneumatic or electric grinders for detailed material removal
• Mini grinders – Compact grinding machines for small-scale fabrication
• Other compatible machines – Including pencil grinders and flexible shaft tools

OEM & Private Label Manufacturing

As a direct manufacturer, Dome offers comprehensive OEM and private label solutions for mini cutting discs. Customisation includes diameter (38–76mm), thickness (0.8–2.0mm), bore size (3–10mm), abrasive formulation, and branded packaging. We support distributors, tool brands, and industrial suppliers in building their own product lines with factory-direct quality and consistent supply.

Our Mini Cutting Disc Range

Browse our range of mini cutting discs by diameter, thickness, or application. All mini cutting wheels are resin-bonded with fibreglass reinforcement and EN12413 certified.

Quick Selection Reference

Product	Diameter	Thickness	Bore	Best Application

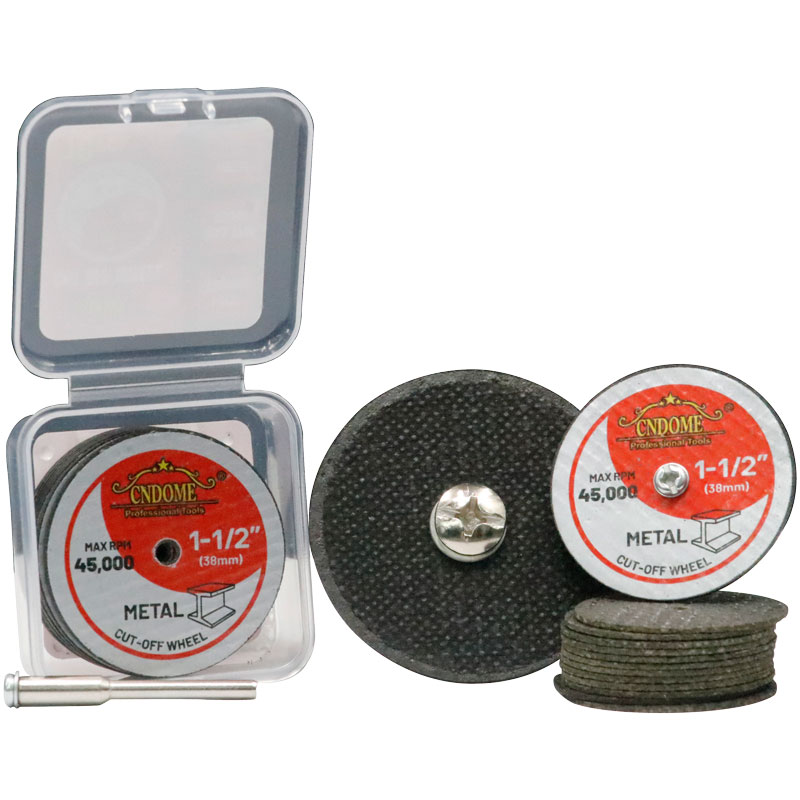

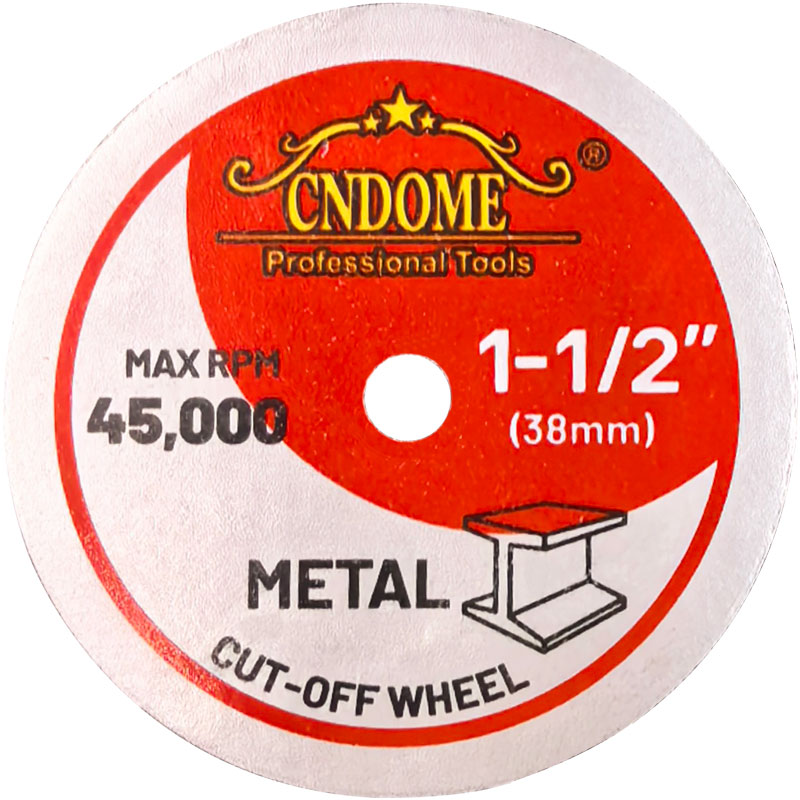

38mm Mini Cutting Disc	38mm	1.1mm	3mm	Precision work, small components, fine cutting
50mm Mini Cutting Disc	50mm	1.2mm	10mm	Small components, sheet metal, detailed work

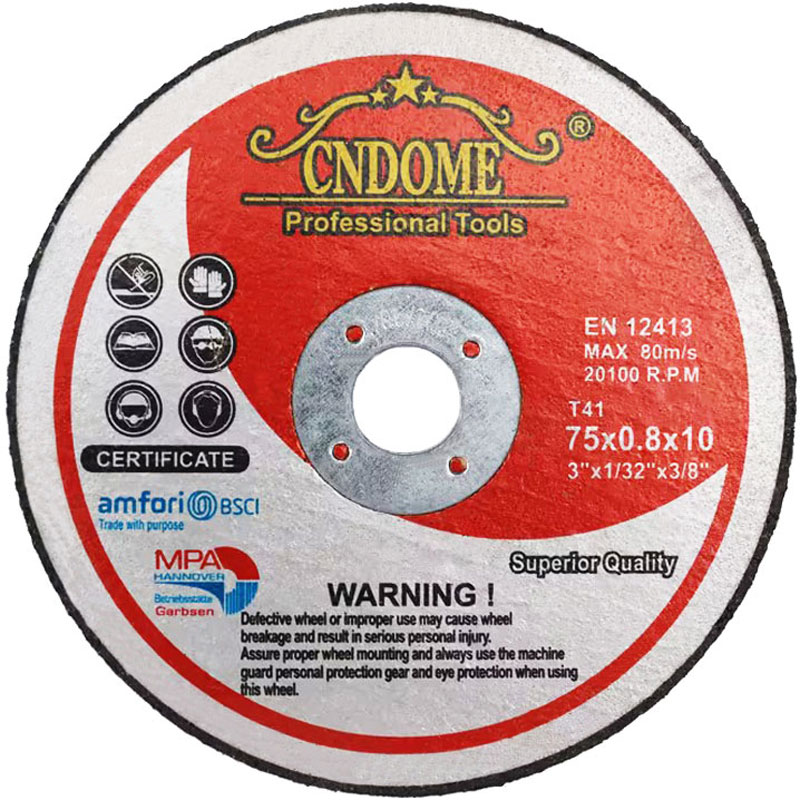

75mm Mini Cutting Disc	75mm	0.8mm	10mm	Stainless steel, tubes, sheet

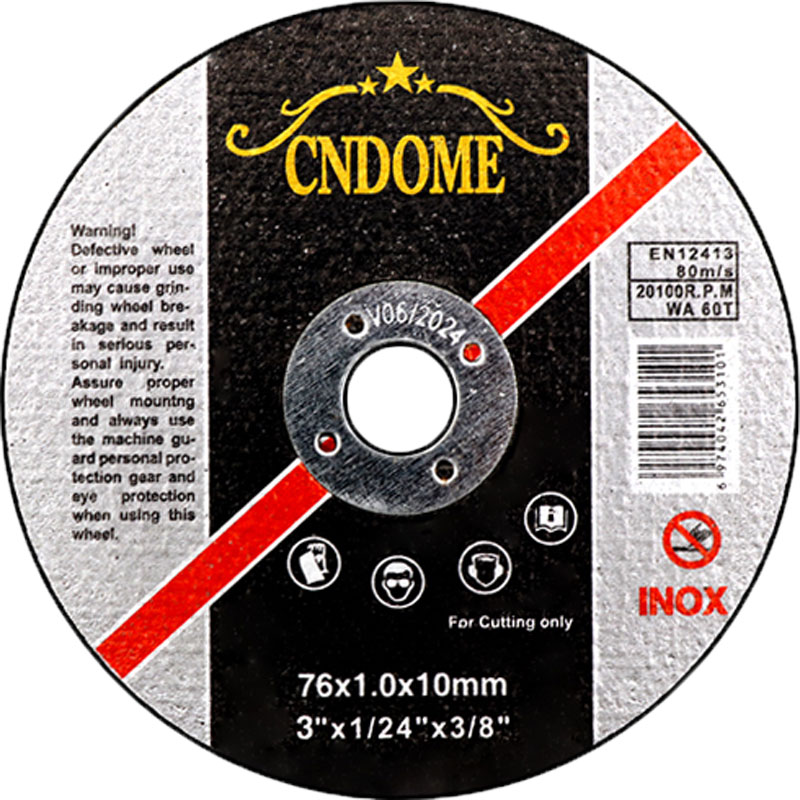

76mm Mini Cutting Disc	76mm	1.0mm	10mm	General metal cutting, light fabrication

What Is a Mini Cutting Disc?

A mini cut off wheel is a small-diameter, resin-bonded abrasive wheel designed for precision cutting applications where standard-sized cutting discs are too large or impractical. Typically ranging from 38mm to 76mm in diameter, these compact cutting tools are engineered for use with rotary tools, die grinders, and mini grinders.

Mini Cutting Disc vs Standard Cutting Disc

The primary difference between a mini cut off wheel and a standard cutting disc lies in application and design. Standard cutting discs (typically 100mm–230mm) are built for heavy fabrication, structural steel cutting, and large-section work. Mini cutting discs (38mm–76mm) are designed for:

• Smaller diameter – Enables access to confined and hard-to-reach areas
• Compact profile – Reduces material removal per pass for greater control
• Easy handling – Lightweight design reduces operator fatigue
• Better access – Fits into tight spaces where larger discs cannot reach
• Controlled cutting – Allows precise, accurate cuts on small components

Common Applications

Mini cutting discs are used for:

• Precision cutting of small metal components
• Sheet metal cutting in confined spaces
• Tubing and pipe cutting where access is limited
• Model making and detailed fabrication
• Automotive repair on small parts and sections
• DIY and hobby work requiring accurate cuts

Why Choose a Small Diameter Cutting Disc?

Small diameter cutting discs offer several advantages over larger cutting discs:

• Greater precision – Smaller cutting discs provide better control and accuracy
• Reduced material waste – Narrower kerf minimises material loss
• Lower heat generation – Less friction means cooler cutting
• Access to tight spaces – Fits where larger tools cannot go
• Compatibility – Works with rotary tools, die grinders, and mini grinders

Construction

Mini cutting wheels are constructed with the same core components as standard cutting discs:

• Abrasive grain – Aluminium oxide or zirconia alumina for efficient cutting
• Resin bond – Phenolic resin matrix holds abrasive grains together
• Fibreglass reinforcement – Multi-layer mesh provides strength and safety
• Centre bore – Matches the spindle of rotary tools, die grinders, and mini grinders

Mini Cutting Disc Sizes

Selecting the right diameter ensures proper fitment on your tool and optimal cutting performance for your application. Each size is matched to specific machine types and use cases.

Quick Size Reference

Disc Size	Tool Type	Typical Application	Common Spec
38mm	Rotary Tool / Pencil Grinder	Ultra‑precision, small components	38 × 1.1 × 3mm
50mm	Rotary Tool / Die Grinder	Small components, light cutting	50 × 1.2 × 10mm

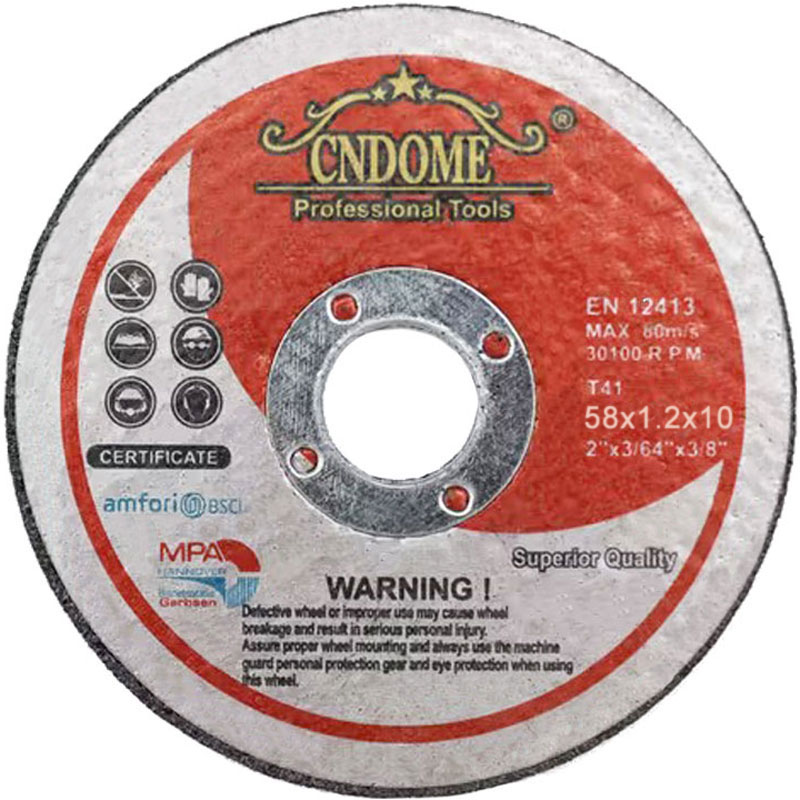

58mm	Rotary Tool / Mini Grinder	Medium components, tubing	58 × 1.2 × 10mm
75mm	Rotary Tool / Die Grinder	Stainless steel, precision cutting	75 × 0.8 × 10mm
76mm	Rotary Tool / Die Grinder	General metal, carbon steel	76 × 1.0 × 10mm

Mini Cutting Disc Thickness Guide

Choosing the right thickness is critical for achieving the desired cutting performance. Each thickness offers a different balance of cutting speed, precision, and durability.

Thickness	Typical Application	Key Benefit
0.8mm	Precision cutting, thin sheet metal (≤1.5mm), stainless steel	Ultra-thin for maximum precision and minimum kerf
1.0mm	Fast and clean cutting, sheet metal, tubing up to 3mm	Best balance of speed and versatility
1.2mm	General small-part cutting, medium thickness materials	Added durability while maintaining good cutting speed
1.6mm	More demanding cutting, thicker materials	Maximum durability for tougher applications
2.0mm	Heavy‑duty cutting, thicker sheet metal (up to 5mm), solid profiles and bar stock	Maximum durability and edge stability for demanding mini cutting applications

How to Choose Thickness

0.8mm Mini Cutting Disc – Ultra-thin profile for maximum precision. Ideal for cutting thin stainless steel sheet (≤1.5mm) where heat control and cut quality are critical. Produces the narrowest kerf with minimal material loss. Best for experienced operators working in stable conditions.

1.0mm Mini Cutting Disc – The most popular thickness for general mini cut off wheel applications. Offers an excellent balance of cutting speed and versatility. Suitable for sheet metal, tubing up to 3mm, and general fabrication work.

1.2mm Mini Cutting Disc – Provides slightly more durability than the 1.0mm while maintaining good cutting speed. Suitable for general small-part cutting and medium thickness materials.

1.6mm Mini Cutting Disc – The thickest option in the mini range, offering maximum durability for more demanding cutting applications. Suitable for thicker materials and tougher cutting conditions.

2.0mm Mini Cutting Disc – Heavy‑duty mini cut off disc for more demanding applications. The 2.0mm thickness provides greater edge stability and durability for cutting thicker sheet metal (up to 5mm), solid profiles, and bar stock where thinner discs may flex or wear too quickly. While it produces a slightly wider kerf, the added rigidity makes it suitable for workshops and industrial settings where robustness and longer service life are priorities.

Mini Cutting Discs for Different Materials

Small cutting discs are suitable for a wide range of materials. The following guide helps you select the right small cutting wheel for your specific material.

Mini Cutting Discs for Rotary Tools and Grinders

Mini cutting wheels are designed for compatibility with a range of handheld power tools. Selecting the right mini cut off disc for your tool ensures optimal cutting performance and operator safety.

Mini Cutting Disc for Rotary Tool

Rotary tools are versatile handheld power tools used for grinding, cutting, and polishing. Mini cutting wheels for rotary tools typically feature small diameters (38mm–76mm) with bore sizes matching the tool’s collet or mandrel system.

Recommended mini cutting disc size: 38mm–76mm

Compatible bore: 3mm or 10mm

Typical application: Precision cutting, model making, detailed fabrication

RPM: Match mini cut off disc rating to tool speed — typically 20,100–45,000 RPM

Mini Cutting Disc for Die Grinder

Die grinders are high-speed handheld tools — typically rotating at 25,000 RPM. Mini cutting wheels for die grinders are designed for precision cutting of metal, stainless steel, and other materials in confined spaces.

Recommended mini cut off disc size: 50mm

Compatible bore: 10mm

Typical application: Metal cutting, deburring, precision work in tight spaces

RPM: Match mini cut off disc rating to tool speed — die grinders operate at 25,000 RPM or higher

Mini Cutting Disc for Angle Grinder

Small cutting discs can also be used with smaller angle grinders (100mm–115mm) for applications requiring more control than standard discs provide. The compact size allows access to tight spaces where larger discs cannot reach.

Recommended small cut off disc size: 75mm-76mm

Compatible bore: 10mm

Typical application: Precision cutting, confined spaces, light fabrication

RPM: Match small cut off disc rating to tool speed — check small cut off disc label

Mini Cutting Disc for Mini Grinder

Mini grinders are compact grinding machines designed for small-scale fabrication and precision work. Mini cutting wheels for mini grinders offer the same precision advantages as rotary tool mini cut off wheel but with higher power and larger diameter options.

Recommended mini cut off wheel size: 75mm–76mm

Compatible bore: 10mm

Typical application: Precision metal cutting, small component fabrication

RPM: Match mini cut off wheel rating to tool speed — check mini cut off wheel label

Mini Cutting Disc Applications

Mini cutting discs are versatile tools for a wide range of precision cutting applications. Below are the key application scenarios where mini cutting wheels deliver superior performance.

Mini Cutting Disc Performance

Mini cutting discs deliver measurable performance advantages for precision cutting applications. The following performance metrics explain how mini cut off discs achieve accurate, clean cuts on small components.

Mini Cutting Disc Performance Test (Representative Data)

Test Parameter	Result
Material	Stainless Steel Sheet (1.6mm, 304 grade)
Disc Specification	76 × 1.6 × 10mm (Zirconia Alumina)
Cutting Machine	Die Grinder, 20,100 RPM
Cutting Time (per 50mm cut)	4–6 seconds
Estimated Cuts per Disc	20–30 cuts (on 1.5mm stainless)
Kerf Width	Approximately 1.3–1.5mm
Disc Wear Pattern	Uniform edge wear; replace at approximately 38mm diameter

Note: Actual performance may vary depending on material grade, machine condition, operator technique, and environmental factors. Contact our technical team for application‑specific performance data.

Mini Cutting Disc vs Standard Cutting Disc

Mini cutting wheels and standard cutting wheels are designed for fundamentally different applications. Understanding the differences helps you select the right tool for the job.

Feature	Mini Cutting Disc	Standard Cutting Disc
Diameter	38–76mm	100–230mm
Accessibility	Excellent — fits tight spaces	General — limited in confined areas
Precision	High — accurate control on small parts	Good — designed for larger sections
Small Components	Excellent — ideal for detailed work	Good — suitable for larger workpieces
Confined Areas	Better — compact size enables access	Limited — larger discs cannot reach
Heavy Sections	Application dependent — limited depth	More suitable — designed for heavy cutting
Kerf Width	Narrow — minimal material loss	Wider — more material removed
Heat Generation	Very low — cool cutting	Moderate to high — more friction

Choose Mini Cutting Disc When:

• Cutting small components and detailed parts
• Working in confined or hard-to-reach spaces
• Precision work where accuracy is critical
• Light metal cutting on thin sections
• Using portable tools like rotary tools and die grinders
• DIY and hobby applications requiring accurate cuts

Choose Standard Cutting Disc When:

• Cutting thick metal (≥10mm) or heavy sections
• Large-scale fabrication work
• Structural steel cutting
• Heavy-duty cutting where durability is the priority
• Using standard angle grinders (100mm–230mm)

How to Choose the Right Mini Cutting Disc

Follow this five-step guide to select the right mini cutting wheel for your application.

Step 1 — Identify the Material

Different materials have different cutting characteristics:

Material	Recommended Disc Type	Why
Stainless Steel	Mini cutting disc (thin profile)	Prevents discolouration, clean edges
Carbon Steel	Mini cutting disc (standard)	Fast cutting, reduced finishing
General Metal	Mini cutting disc (versatile)	Effective on most ferrous metals
Aluminium	Mini cutting disc (anti-loading)	Prevents clogging, clean cuts

Step 2 — Select Mini Cutting Wheel Diameter

Choose diameter based on your application and tool:

Material/Application	Recommended Diameter
Precision work, model making	38–50mm
Sheet metal, small components	50-76mm
General fabrication, tubing	75-76mm
Heavier precision cutting	75-76mm

Step 3 — Select Thickness

Choose thickness based on material thickness and application:

Material Thickness	Recommended Disc Thickness
Thin sheet (≤1.5mm), precision cuts	0.8mm
Sheet metal (≤3mm), general cutting	1.0mm
Medium thickness, general fabrication	1.2mm
Thicker materials, demanding cutting	1.6mm
Heavy-duty cutting, solid profiles, thicker sheet (up to 5mm)	2.0mm

Step 4 — Match the Tool

Ensure the mini cut off disc matches your tool specifications:

Tool Type	Compatible Disc Diameter	Bore Size
Rotary Tool	38–76mm	3mm (mandrel) / 10mm
Die Grinder	38–76mm	3mm / 10mm
Mini Grinder	76mm	10mm
Angle Grinder	76mm	10mm

Step 5 — Check RPM

Every mini cutting disc has a maximum RPM printed on the label. Never exceed this speed. Most mini cutting wheels are rated for 20,100–45,000 RPM depending on diameter.

• 38–50mm discs – typically rated for 30,100–45,000 RPM
• 75–76mm discs – typically rated for 20,100 RPM

Check your tool’s maximum speed and ensure it does not exceed the mini cut off disc’s rating.

Mini Cutting Disc Specifications

Below is the complete technical specification table for Dome mini cutting wheels.

Specification	Details
Product Type	Mini Cutting Disc
Abrasive	Aluminium Oxide / Zirconia Alumina
Bond	Resin Bonded (Phenolic)
Reinforcement	Fibreglass Mesh
Diameter	38mm · 50mm · 60mm · 75mm · 76mm
Thickness	0.8mm · 1.0mm · 1.2mm · 1.6mm · 2.0mm
Bore Size	3mm · 10mm
Shape	T41 (Flat)
Material	Metal · Stainless Steel · Carbon Steel · Aluminium
Machine	Rotary Tool · Die Grinder · Mini Grinder · Angle Grinder
Max RPM	Product specific — check disc label
Certification	EN12413
Testing	100% RPM Tested
OEM	Available — custom diameter, thickness, bore, abrasive formulation
Private Label	Available — branded packaging, custom labelling

Ordering information: Standard cutting discs are available in popular sizes. Custom specifications — including diameter, thickness, bore size, abrasive formulation, and packaging — are available for OEM and wholesale orders. Contact our sales team with your requirements.

Mini Cutting Disc Safety and RPM Guide

Mini cutting wheels operate at high speeds — often much higher than standard cutting wheels. Following these safety guidelines is essential for operator safety and mini cut off disc performance.

Check Maximum RPM

Never exceed the maximum operating speed marked on the mini cut off disc. Every mini cutting wheel has a maximum RPM printed on the label. If your rotary tool or die grinder runs faster than this speed, the mini cut off wheel could shatter. For a 50mm mini cutting disc rated at 30,100 RPM, your machine must not exceed this speed.

Match Mini Cutting Disc and Tool

Ensure the mini cut off wheel diameter and bore size match your tool. Mini cutting discs are designed for specific tool types — rotary tools, die grinders, mini grinders, and angle grinders. The tool’s maximum no-load speed must not exceed the mini cut off disc’s rated maximum RPM.

Correct Installation

Ensure the mini cutting disc is properly mounted with the correct mandrel or arbor. For rotary tools, the mandrel must be fully inserted to its end to prevent unnecessary damage and injury. Tighten the collet nut securely — but do not overtighten. Incorrect installation can cause the mini cut off wheel to run out of true, leading to vibration and potential mini cut off disc failure.

Inspect the Mini Cutting Disc

Check the mini cutting wheel for cracks, chips, or damage before mounting. Discard any disc that shows visible damage. Even minor damage can become a fracture point at high RPM. Mini cutting discs are particularly susceptible to damage from drops or impacts due to their thin profile.

Wear Eye and Face Protection

Always wear safety glasses or a full face shield when using mini cutting discs. High-speed cutting generates sparks and small metal particles that can cause serious eye injury. A face shield provides additional protection against mini cutting wheel fragments in the event of mini cut off wheel failure.

Use Appropriate PPE

In addition to eye protection, wear hearing protection — rotary tools and die grinders generate significant noise. Heavy-duty work gloves and protective clothing are also recommended. Never wear loose clothing or jewellery that could become entangled in the tool.

Never Use a Damaged Mini Cutting Disc

Never use a mini cut off disc that has been dropped or shows signs of damage. Even minor damage can become a fracture point at high RPM. If in doubt, discard the disc. Mini cutting discs are thin and brittle — they are not designed to withstand impacts or rough handling.

Do Not Exceed Maximum RPM

This point must be emphasised: never exceed the maximum RPM marked on the mini cutting disc. Exceeding the rated speed is the leading cause of mini cut off disc failure and shattering. When a mini cutting wheel spins faster than its design limit, centrifugal forces overcome the tensile strength of the reinforcement. The result is sudden, catastrophic mini cut off wheel failure — sending fragments at high velocity.

Mini Cutting Disc Testing & Quality Control

Dome’s quality control system for mini cutting discs covers every stage of production — from incoming raw materials to finished product.

Raw Material Inspection

Every batch of abrasive grains, resin binders, and fibreglass mesh is inspected before production. Particle size, chemical composition, viscosity, and tensile strength are verified against specifications.

Dimensional Inspection

Outer diameter, thickness, and bore size are inspected on every mini cut off disc against tolerance specifications. Discs that fall outside tolerance are rejected.

Balance Testing

Dynamic balance testing detects mass eccentricity on every smaill cutting disc. Out-of-balance discs are rejected. A balanced small cutting wheel reduces vibration, improves cut quality, and extends tool bearing life.

Hardness / Bond Testing

Sample compact cutting discs from each batch are tested for bond hardness to verify that the resin curing process has achieved the required hardness grade. Bond hardness directly affects grain retention and cutting performance.

RPM Testing

Every compact cutting disc is individually 100% RPM tested before shipment — not batch sampled. Each compact cutting disc is spun at its rated maximum operating speed to verify structural integrity under centrifugal force.

Burst Strength Testing

Sample compact cutting discs from each batch are accelerated until they break. EN12413 requires burst speed ≥ 1.5× rated maximum RPM. Dome’s internal standards exceed this requirement, providing an additional safety margin.

Cutting Performance Testing

Sample mini cutting discs are tested on standard workpieces to verify cutting speed, service life, cut quality, and heat generation. Performance data is recorded and traceable to each production batch.

OEM Mini Cutting Disc Manufacturer

Dome is a direct manufacturer of mini cutting discs — not a trading company. We operate our own factory with 60 automated production lines, producing over 600,000 discs daily. When you work with Dome, you work directly with the people who make the product.

We offer six core OEM capabilities to help distributors, tool brands, and industrial suppliers build their own mini cutting wheel lines.

Our Mini Cutting Disc OEM Process

Dome’s OEM process follows a structured workflow from initial requirement to final shipment. Each step is documented and traceable.

Customer Requirement – You provide target materials, cutting applications, annual volume, and certification needs. We assess feasibility and recommend initial specifications.

Application Analysis – We analyse your specific application — materials being cut, tools being used, required precision, and operating conditions.

Formula Selection – Based on your requirements, we select the appropriate abrasive formulation — grain type, bond hardness, grit size, and reinforcement layers.

Sample Production – We produce samples with preliminary test data covering dimensional accuracy, balance, and cutting performance.

Performance Testing – You test samples on your own equipment — verifying cutting speed, service life, cut quality, and heat generation under your actual working conditions.

Customer Approval – We move to mass production only after you approve performance. Free samples are available for testing before you commit to a bulk order.

Mass Production – After sample approval, we scale up to full production. Automated lines in climate-controlled workshops ensure batch-to-batch consistency.

Quality Inspection – Every batch undergoes dimensional inspection, balance testing, and sample burst testing (EN12413). Every compact cutting disc is individually 100% RPM tested before shipment.

Packaging – Finished mini cutting discs are shrink-wrapped, labelled with your brand design, and packed into custom-printed cartons with batch numbers and traceability data.

Shipment – Orders are consolidated and shipped with a COA (Certificate of Analysis) covering key test data. Standard lead time: approximately 35 days from order confirmation.

Mini Cutting Disc Manufacturing Capability

Dome operates a dedicated manufacturing facility for resin bonded abrasive products, including mini cutting discs.

Production Capacity

Capability	Specification
Factory Area	20,000+ m² total
Production Workshop	13,000 m² (climate-controlled)
Production Lines	Nearly 60 fully automated lines
Daily Output	600,000 discs

R&D Capability

10+ R&D and technical staff work on abrasive formulation development, bond optimisation, and cutting performance testing. This technical capability allows us to develop custom formulations for specific materials and applications.

OEM Capability

Full OEM manufacturing with custom diameters (38–76mm), thicknesses (0.8–2.0mm), bore sizes (3–10mm), abrasive formulations, and branded packaging. We support both small-batch and high-volume orders.

Quality Control

Every mini cutting disc undergoes 100% RPM testing before shipment, with batch samples subjected to EN12413 burst testing (burst speed ≥ 1.5× rated maximum RPM). Products carry EN12413, MPA, CE, ISO9001, and BSCI certifications.

How We Manufacture Mini Cutting Discs

Dome’s mini cutting discs are manufactured through a controlled process that ensures consistent quality, reliable performance, and safety at high operating speeds.

Mini Cutting Disc Certifications

Dome mini cutting wheels are backed by internationally recognised certifications that verify product safety, quality management, and responsible manufacturing.

EN12413 – European safety standard for bonded abrasive products. Confirms burst speed ≥ 1.5× rated RPM — mandatory for EU market compliance.

MPA – German safety certification for abrasive tools. Verifies compliance with Germany’s strict safety standards — key for European market access.

CE – EU market access mark. Confirms compliance with health, safety, and environmental requirements — legal sale across all EU member states.

ISO9001 – International quality management standard. Ensures batch-to-batch consistency, full traceability, and reliable product performance.

BSCI – European supply chain social audit. Verifies labour rights, health and safety, and environmental compliance — meets major brand procurement requirements.

Related Cutting & Grinding Products

Mini Cutting Disc Resources

• The UltimateGuide to Mini Cutting Discs: Versatile Tools for Precision Cutting
• Understanding Mini Cutting Discs: Versatility in a Compact Size
• The Versatility of Mini Cutting Discs: A Comprehensive Guide
• Understanding Mini Cutting Discs: Versatile Tools for Precision Cutting
• The Ultimate Guide to Mini Cutting Discs: Versatile Tools for Precision Work
• What materials can the mini cutting disc be used for?
